Inject and paginate EPUB contents

[Implementers’ doc] [Authors’ info]

Injection

Depending on the platform and version you’re developing for, contents must be injected into:

Indeed, we must provide authors with a reliable context in which their styles and scripts are scoped.

Margins and dimensions

Since we must take viewport units into account, especially vh (viewport height), at least the top and bottom margins must be set on this container, and not inside it.

You may also want to set left and right margins on this container so that all margins are equal in the two-column view.

Finally, on larger screens, you’ll have to set dimensions on this container so that it doesn’t become too large.

Background color

Please note you must deal with the background-color outside this container, especially as the user can set reading modes (night, sepia, etc.). In other words, it must be synced with this user setting so that the entire screen is the same background-color.

As a friendly reminder, you can allow transparency for the iframe if you’re using one. That should help deal with background-color at the global level.

<iframe src="source.xhtml" allowtransparency="true"></iframe>

Then set the --RS__backgroundColor variable to transparent in ReadiumCSS-base.css, although you will have to modify the current user settings stylesheet so that it can work this way.

Pagination

Contents are paginated using CSS multicolumns, for several reasons:

Default

Pagination is a single column by default, which means the Reading System/app is responsible for its responsiveness.

For instance, if the reader is using a tablet in landscape mode and you want to display two “pages”/columns automatically, you have to tell ReadiumCSS by applying --USER__colCount: 2; to the :root element – if it’s not already set by this user of course.

This is a major change from version 1, as the responsive aspect of pagination was built-in.

The RS owns :root and part of body

Since we must inject contents and columns are implemented at the :root level (i.e. html), the Reading System owns the entire styling for this selector.

Font size is an important metric since the responsive design relies entirely on rem (root em) so this style must be enforced by any means necessary.

For body, we own:

You can control horizontal margins in several ways:

  1. using column-gap and padding for :root;
  2. using column-gap and margin for the web view/chrome view/iframe;
  3. using padding for :root and/or body.

Please note that when using padding, you must take it into account when sizing :root and/or body. Their widths contain the padding set for the element.

The pagination model

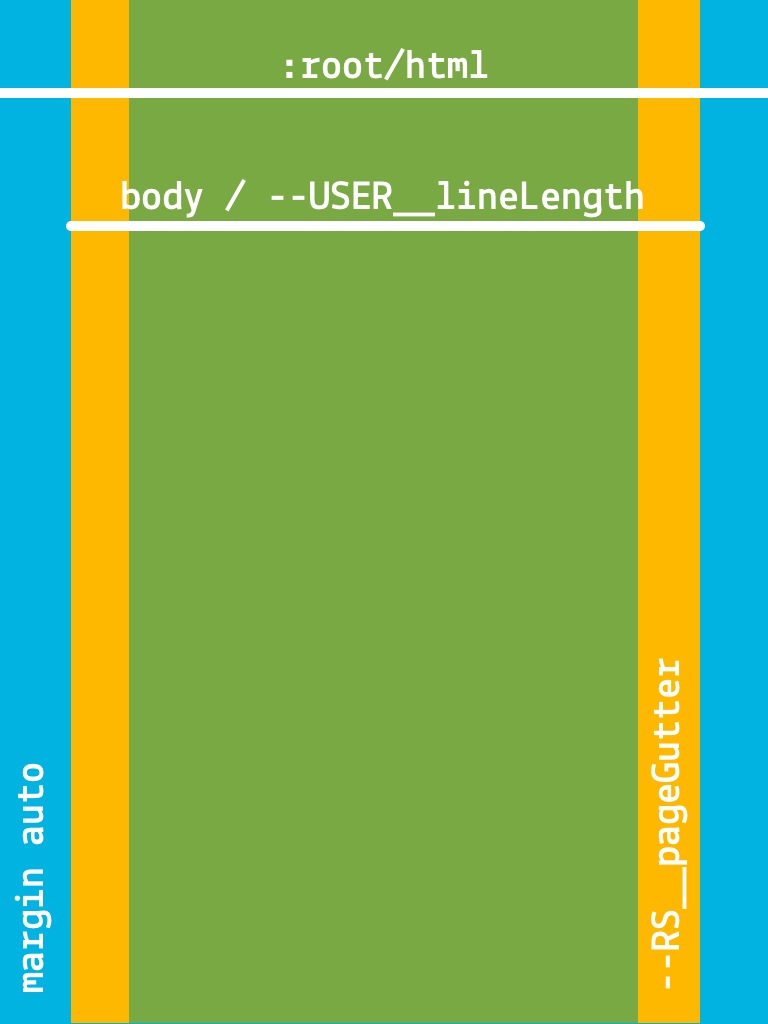

This is the model you’re dealing with. It’s been simplified in version 2 in order to be more reliable.

The single page model relies on the column width of the :root element. Line-length is constrained by the max-width of the body element, including its padding. Finally an auto margin centers the content.

Page gutters are part of body (--RS__pageGutter), hence --USER__lineLength (or --RS__defaultLineLength if no user preference is set). Contents are centered in :root using the auto value for body margins.

By default, --RS__pageGutter is set to 0. You can set it as you wish, but take into account it will substract from --USER__lineLength.

Variables you can set

Please note those variables’ value can be redefined using media queries. You don’t need to redeclare entire declarations.

--RS__colWidth

The optimal column’s width. We set it to 100% (100vh in vertical-writing) for a single-column for Safari – otherwise it won’t fragment content, and auto for multiple so that the column-count can be prioritized.

--RS__colCount

The optimal number of columns (depending on the columns’ width).

--RS__colGap

The gap between columns. It must be set in pixels so that it won’t resize with font size.

You must account for this gap when scrolling.

--RS__pageGutter

The inline (horizontal by default, vertical in vertical-writing) page margins. It must be set in pixels so that it won’t resize with font size.

--RS__defaultLineLength

The default line-length when none is set by the user. It should be set in rem in order to take :root’s font-size as a reference, whichever the body’s font-size might be.

--USER__lineLength

The line-length set by the user. It can be set in any unit CSS property max-width accepts.

Right-to-left progression

The pagination model will take care of itself if the correct dir attribute is set on html and body.

In other words, if dir="rtl" is set for both elements, the column-progression will be automatically reversed.

When to use the Right-to-left progression

What implementers need to do:

  1. check the page-progression-direction for the spine item;
  2. check the language – do not forget there can be multiple <dc:language> items;
  3. load specific styles for RTL scripts;
  4. append xml:lang and/or lang attribute if it’s missing in XHTML documents;
  5. append dir="rtl" attributes if they’re missing for both html and body in XHTML documents;
  6. load specific fonts’ lists for user settings, based on the primary language of the publication;
  7. add/remove specific user settings, based on the primary language of the publication;
  8. Apply the correct page-progression-direction (in RTL, next resource is on the left, previous is on the right);
  9. change the direction of the toc and at least some pieces of user settings (e.g. text-align).

The current implementation is limited to the following combinations:

Language IANA tag page-progression-direction dir attribute
Arabic ar RTL rtl
Farsi (Persian) fa RTL rtl
Hebrew he RTL rtl

IANA Language Subtag registery.

We may add others at some point in the future. Please feel free to report the languages or scripts missing in this mapping. Please bear in mind a list of default (preferably system) fonts will greatly help to add support for those languages and scripts. See Default Fonts.

Test files can be retrieved from the Readium CSS’ i18n-samples OPDS feed.

Be cautious, the direction propagates

As explicitly stated in CSS Writing Modes Level 3:

As a special case for handling HTML documents, if the :root element has a <body> child element, the principal writing mode is instead taken from the values of writing-mode and direction on the first such child element instead of taken from the root element.

What this means is that the dir attribute (or the direction CSS property) set for body will override the one set for html. Unlike most other CSS properties, which don’t impact the parent element, the dir attribute (or the direction CSS property) propagates in this very specific case:

<html dir="ltr">
  <body dir="rtl">
   <!-- dir="rtl" should be used. -->

html {
  direction: ltr;
}

body {
  direction: rtl;
  /* rtl propagates to html and overrides ltr.
     You can think of it as a JS event bubbling up if that makes more sense. */
}

We MUST consequently force the direction for all documents in the publication, and can’t manage ltr documents in a rtl publication.

Note: While this isn’t necessarily the case in practice, in Blink, Gecko/Quantum and Webkit, and you can emulate a reversed column-progression for ltr documents in a rtl publication, this behavior may change in the future.

The pagination model for vertical writing modes

When publications are in Chinese, Japanese, Korean, and Mongolian, and laid out with a vertical-* writing mode, we must switch to a different model of pagination.

Indeed, columns are automatically laid out on the y-axis (vertical) with such writing modes, and the behavior of multi-column in orthogonal flows has been deferred to CSS Writing Modes Level 4. This means we must stick to a single column, and can’t support several columns – they are stacked on top of one another, which is not what is expected.

This also implies the scroll progression is vertical, hence horizontal navigation/swipes have to be re-mapped on this y-axis. You may also want to disable animations so that it doesn’t feel disorienting to users.

We consequently use a “Fragmented Model”, as it differs significantly from the “Pagination Model”, especially the column-axis.

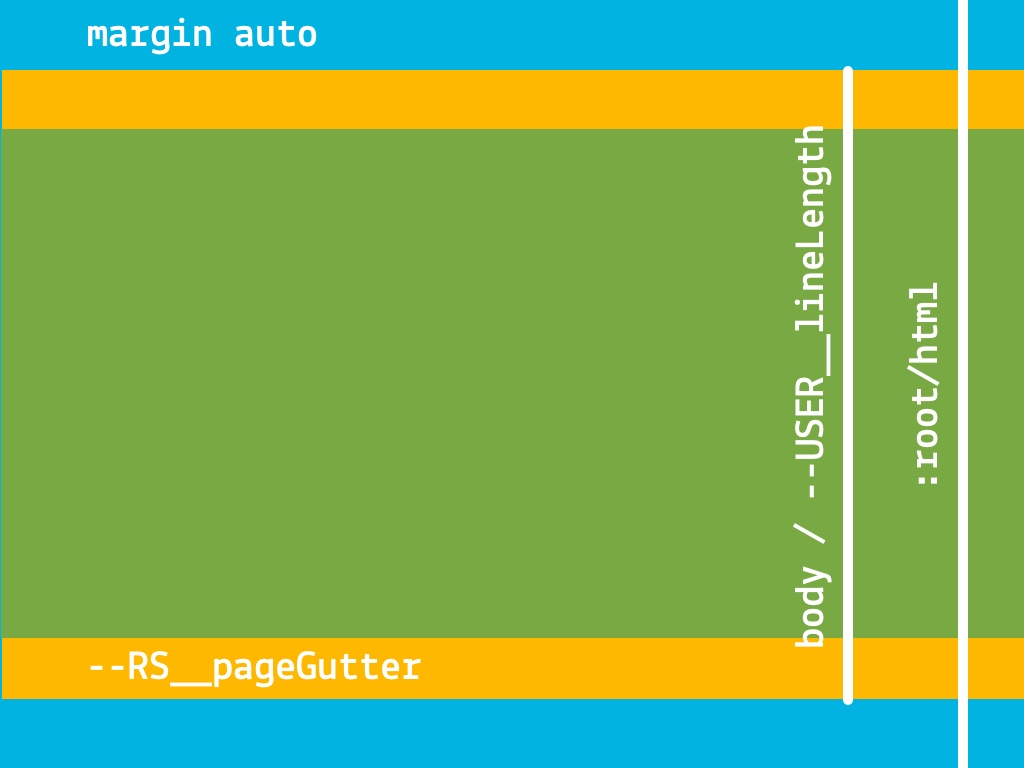

The fragmented Model is kind of a superset of the single page model in the vertical direction, with extra padding added to the root element for extra horizontal gutters.

One can think of the fragmented model as the single page model rotated 90% clockwise.

Due to the limitations listed above, implementers may want to use their own model. It is not uncommon to handle vertical writing pagination programmatically, as it can be done relatively easily and efficiently thanks to characters being (mostly) monospace e.g. scrolling the viewport by an offset based on these characters.

Since pagination is the default view, if you don’t want to use this model and implement yours, you can set --RS__disablePagination: readium-noVerticalPagination-on on the :root (html) element.

When to use the fragmented model

What implementers need to do:

  1. check the page-progression-direction for the spine item;
  2. check the language – do not forget there can be multiple <dc:language> items;
  3. load the specific styles for CJK if needed;
  4. append xml:lang and/or lang attribute if it’s missing in XHTML documents;
  5. load specific fonts’ lists for user settings, based on the primary language of the publication;
  6. add/remove specific user settings, based on the primary language of the publication;
  7. Apply the correct page-progression-direction (in RTL, next resource is on the left, previous is on the right).

Here is the correct mapping for combinations resulting in the vertical-* writing mode:

Language IANA tag page-progression-direction Writing-mode
Chinese zh RTL vertical-rl
Chinese (Traditional) zh-Hant RTL vertical-rl
Chinese (Taiwan) zh-TW RTL vertical-rl
Chinese (Hong Kong) zh-HK RTL vertical-rl
Korean ko RTL vertical-rl
Japanese ja RTL vertical-rl
Mongolian mn-Mong LTR / Default / None vertical-lr

IANA Language Subtag registery.

Test files can be retrieved from the Readium CSS’ i18n-samples OPDS feed.

When not to use the fragmented model

If a publication doesn’t need to be laid out in a vertical-* writing mode, the default pagination model must be used.

There are still specific styles for CJK Horizontal to load though.

Here is the correct mapping for combinations resulting in the horizontal-tb writing mode:

Language IANA tag page-progression-direction Writing-mode
Chinese zh LTR / Default / None horizontal-tb
Chinese (Simplified) zh-Hans LTR / Default / None horizontal-tb
Chinese (Taiwan) zh-TW LTR / Default / None horizontal-tb
Chinese (Hong Kong) zh-HK LTR / Default / None horizontal-tb
Korean ko LTR / Default / None horizontal-tb
Japanese ja LTR / Default / None horizontal-tb
Mongolian mn-Cyrl LTR / Default / None horizontal-tb

IANA Language Subtag registery.

Be cautious, the writing-mode CSS property propagates

As explicitly stated in CSS Writing Modes Level 3:

As a special case for handling HTML documents, if the :root element has a <body> child element, the principal writing mode is instead taken from the values of writing-mode and direction on the first such child element instead of taken from the root element.

What this means is that the writing-mode declared for body will override the one declared for html. Unlike most other CSS properties, which don’t impact the parent element, writing-mode propagates in this very specific case:

html {
  writing-mode: horizontal-tb;
}

body {
  writing-mode: vertical-rl;
  /* vertical-rl propagates to html and overrides horizontal-tb.
     You can think of it as a JS event bubbling up if that makes more sense. */
}

We MUST consequently force the writing-mode for all documents in the publication, and can’t manage horizontal-tb documents in a vertical-rl publication.

Patch and safeguards

We’ve designed two extras for pagination:

  1. a patch for HTML5 Suggested Rendering, which takes care of paged media;
  2. safeguards, which make sure some elements will be managed as expected by authors in columns.

Patch

The HTML5 patch deals with:

You can use it with or without pagination, it should not make any difference.

Safeguards

Safeguards deal with:

Once again, you can use it with or without pagination, it should not make any difference.

Variables you can set
--RS__maxMediaWidth

The max-width for media elements i.e. img, svg, audio and video.

--RS__maxMediaHeight

The max-height for media elements i.e. img, svg, audio and video.

--RS__boxSizingMedia

The box model (box-sizing) you want to use for media elements.

--RS__boxSizingTable

The box model (box-sizing) you want to use for tables.
